Balance Weave Belt
products description
Jiangsu Huada’s balance weave conveyor belts deliver unmatched stability for demanding industrial processes. Engineered with cross-rod tension control technology, our belts ensure <0.2mm/m linear deviation and 30% higher load capacity than standard single-layer weaves.
Ideal for:
Precision component assembly lines
High-temperature glass/ceramic annealing
Food-grade sanitary conveying
Certifications:
√ ISO 9001:2015 | √ FDA 21 CFR 177.2600 | √ EU 1935/2004
Technical Advantage
√ Engineered Stability
±0.1mm rod alignment accuracy
Tensile strength: 600-1200 N/mm² (customizable)
√ Multi-Industry Adaptability
Temperature range: -40°C to 1200°C
Material options: 304/316L/Inconel
√ Maintenance Efficiency
Interchangeable rods reduce downtime by 60%
Self-cleaning design for sticky materials
Application Scenarios
| Industry | Application | Huada Advantage |
| Automotive | Engine part heat treatment | 314 SS withstands 800°C quench oil |
| Food Processing | Cookie baking line conveying | FDA-compliant open area 72% |
| Glass Manufacturing | Tempered glass annealing | Zero warp at 650°C thermal cycling |
| Electronics | SMD component handling | ESD-safe surface (10⁶-10⁹Ω) |
Technical Parameters
| Parameter | Huada Balance Weave | Industry Standard |
| Load Distribution | ±5% across 2m span | ±15% |
| Minimum Rod Diameter | 1.6mm | 2.5mm |
| Thermal Expansion | 11.5×10⁻⁶/°C | 16×10⁻⁶/°C |
| Hygienic Cleanability | EHEDG Type EL Class I | Basic CIP compliance |
Automotive Tier 1 Supplier Case
After switching to Huada’s balance weave belts:
18% reduction in misaligned engine blocks
25% faster line speed with stable positioning
Passed 1 million cycles endurance test

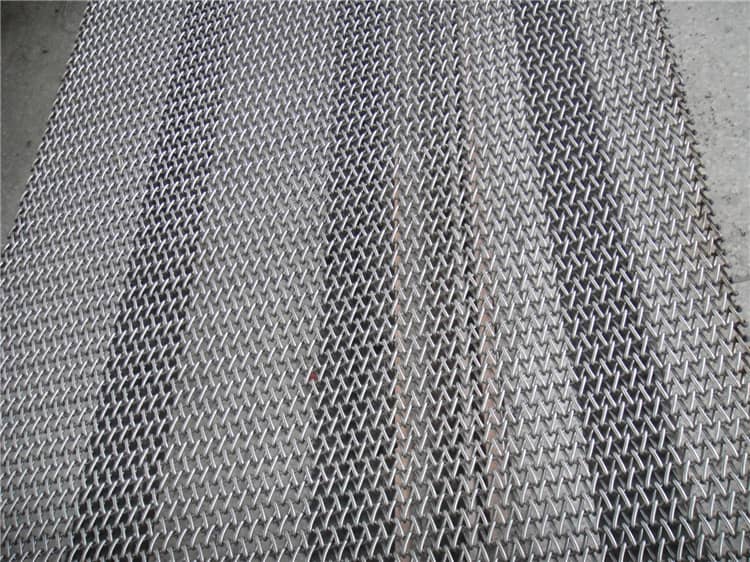

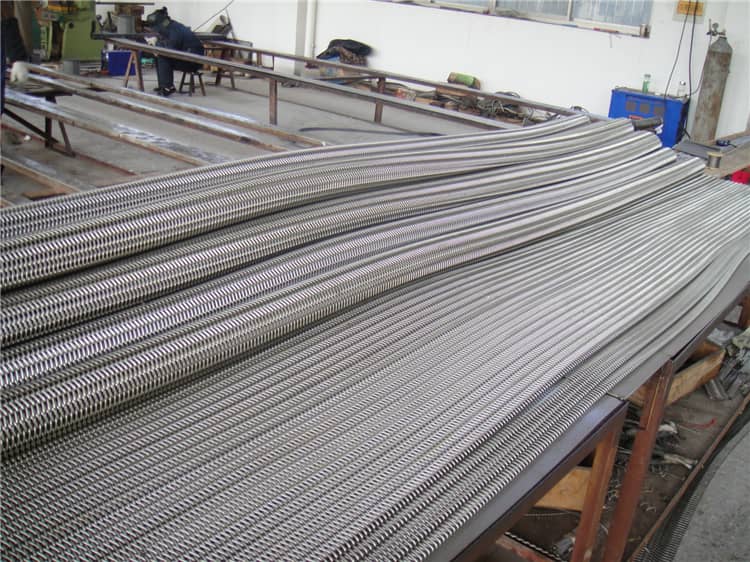

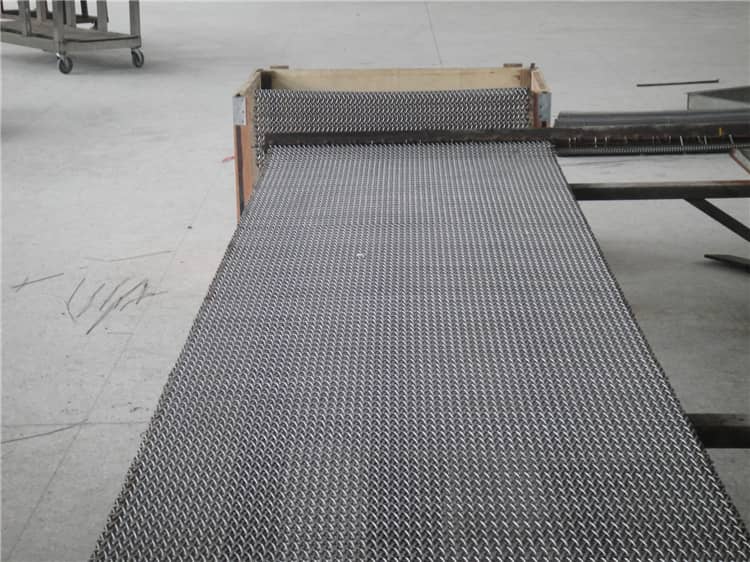

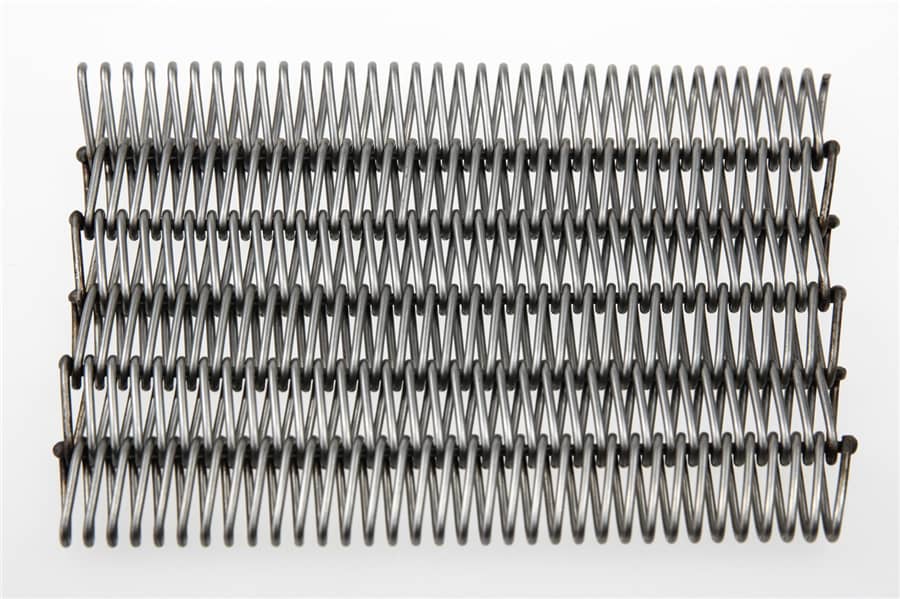

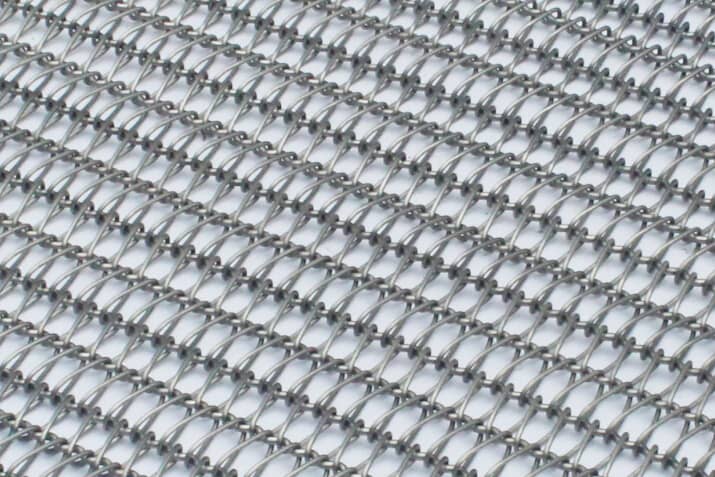

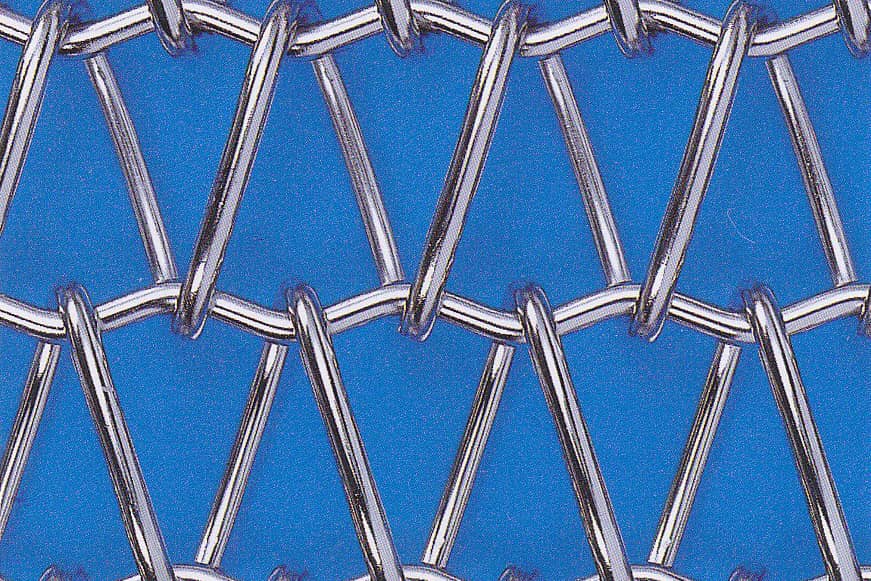

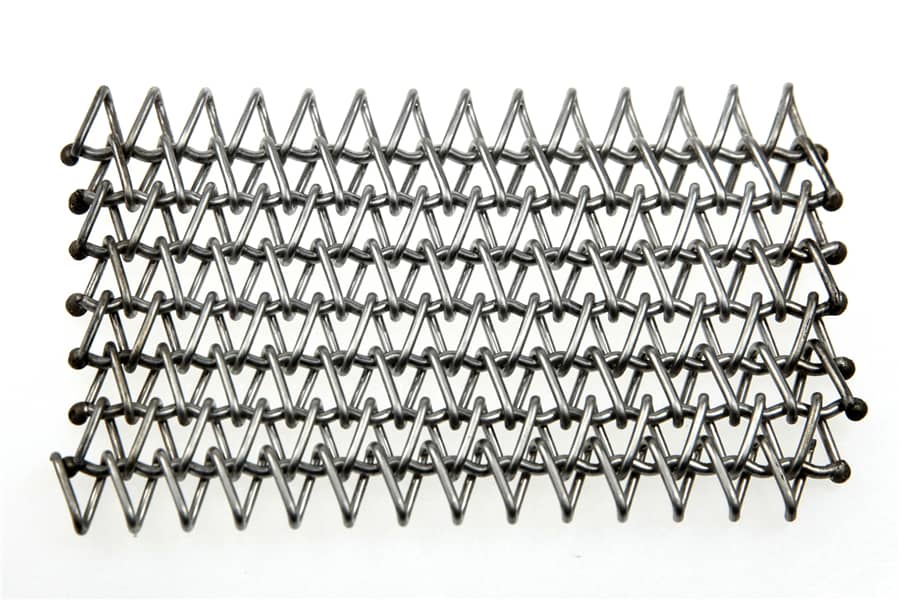

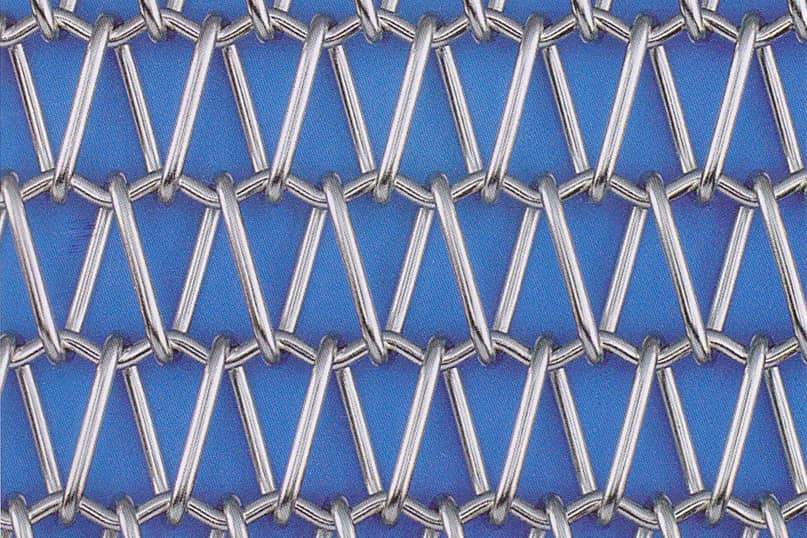

detail pictures
-
Balanced Weave Mesh Belt | High-Temp & Low-Maint Design
