Flat Flex Belt
products description
Our FDA-compliant flat flex belts for chocolate enrobing & confectionery lines. 304 stainless steel with quick-release design, HACCP certified. Withstands -20°C to 250°C.
Jiangsu Huada’s flat flex conveyor belts combine ultra-thin profile design (0.5-2.0mm) with exceptional flexibility for precision handling in dynamic industrial environments. Engineered with 316L/304 stainless steel and PTFE-free coatings, our belts deliver:
Jiangsu Huada’s flat flex conveyor belts combine ultra-thin profile design (0.5-2.0mm) with exceptional flexibility for precision handling in dynamic industrial environments. Engineered with 316L/304 stainless steel and PTFE-free coatings, our belts deliver:
180° Minimum Bend Radius without deformation
Continuous Operation from -50°C to 300°C
Zero Particle Shedding (ISO 14644-1 Class 4 compliant)
Certifications:
√ ISO 9001:2015 | √ FDA 21 CFR 177.2600 | √ RoHS
Technical Advantage
√ Superior Flexibility
Thickness: 0.5-2.0mm (customizable)
Bend cycles: 500,000+ (ASTM D430)
Edge rigidity: 5X higher than standard belts
√ Thermal Adaptability
Material options: 316L (-50°C to 300°C) / Inconel 600 (up to 600°C)
Thermal expansion: 12×10⁻⁶/°C
√ Precision Performance
Surface flatness: ±0.03mm/m
ESD-safe variants: 10⁶-10⁹Ω surface resistance
Application Scenarios
| Industry | Application | Huada Solution |
| Electronics | SMT Pick-and-Place Systems | ESD-safe 0.8mm thin belt |
| Food Packaging | Chocolate Bar Wrapping | Non-stick coating (Ra ≤0.4μm) |
| Pharmaceutical | Blister Pack Transport | CIP-ready 316L SS design |
| Automotive | Micro-Screw Feeding Lines | 1.2mm belt with laser guides |
Technical Parameters
| Parameter | Huada Flat Flex Belt | Industry Standard |
| Thickness Range | 0.5-2.0mm | 1.0-3.0mm |
| Minimum Bend Radius | 180mm | 300mm |
| Load Capacity | 30 kg/m² (2.0mm thick) | 15 kg/m² |
| Cleanability (CIP) | 10-minute cycle | 25+ minutes |
Case Study: Global Electronics Manufacturer
Huada’s 0.8mm flat flex belts enabled:
Zero PCB scratches in 10M+ placement cycles
35% space savings vs. traditional conveyors
Passed ESD S20.20 with <0.1V static retention

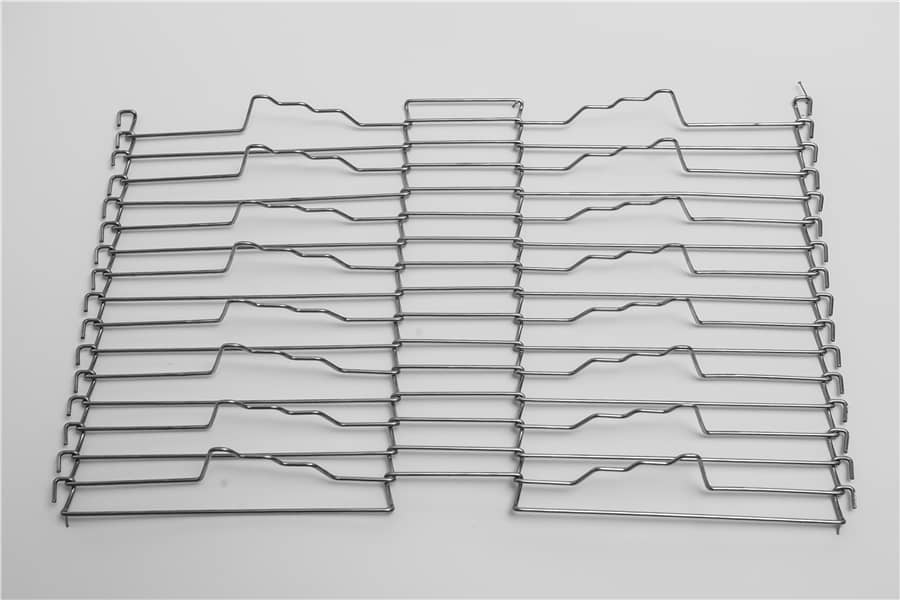

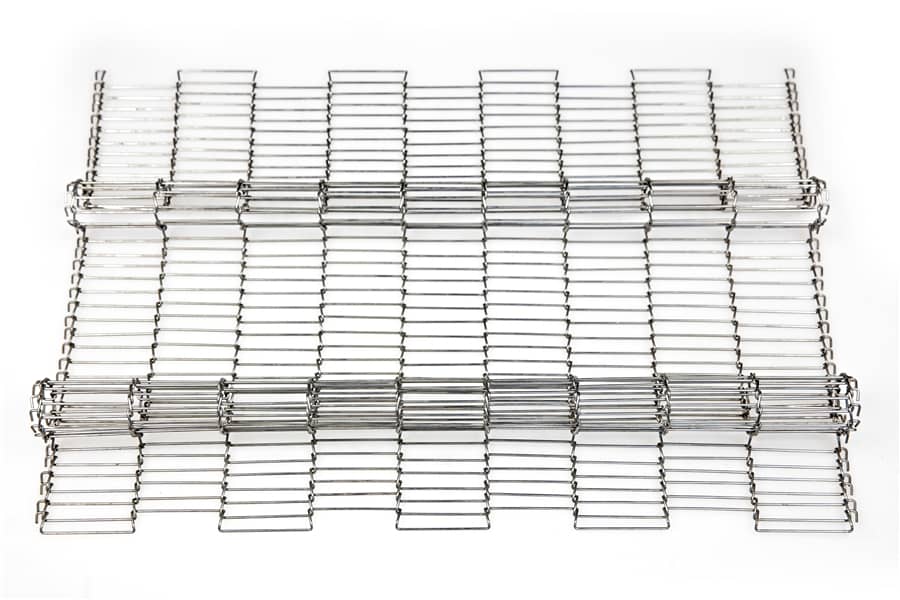

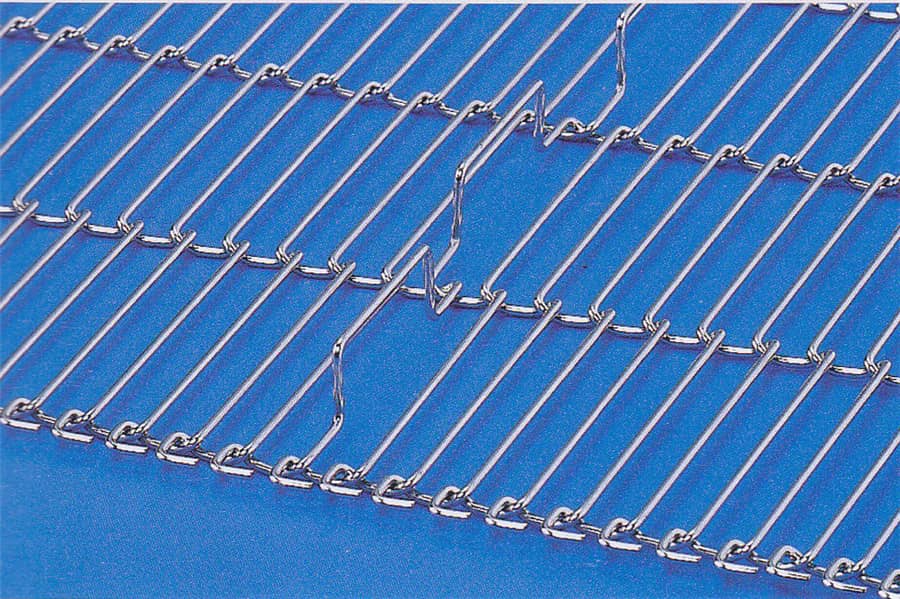

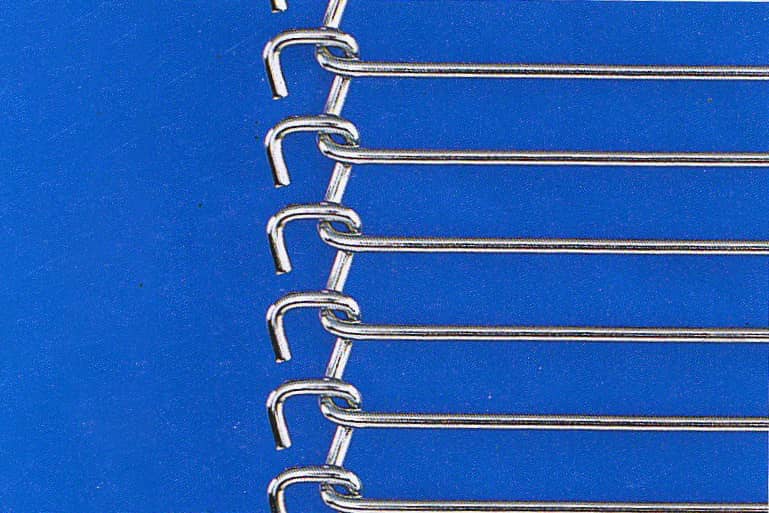

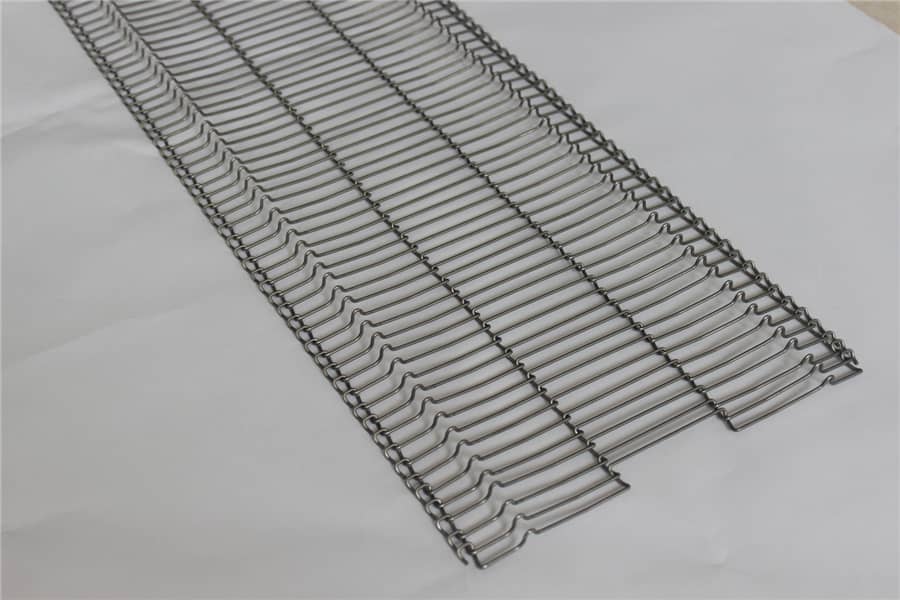

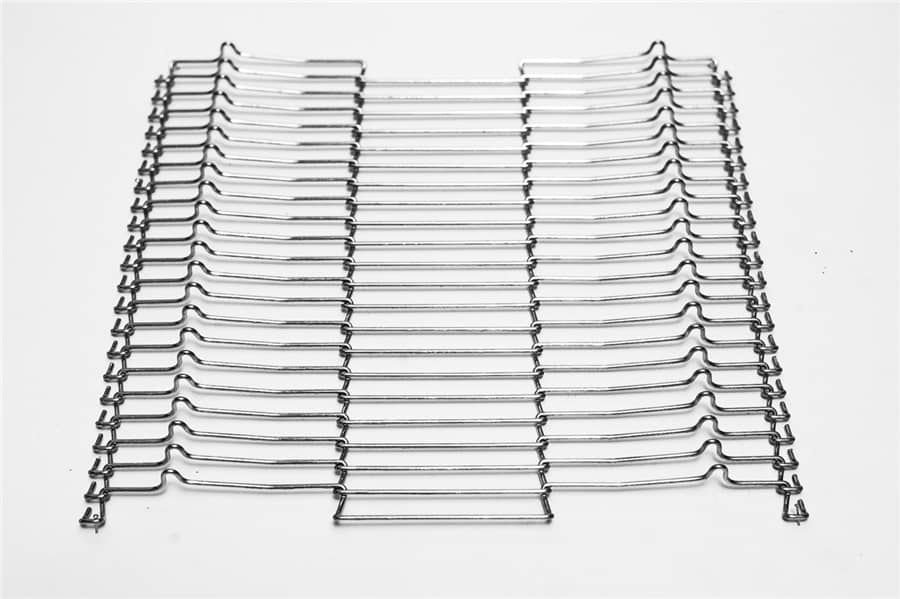

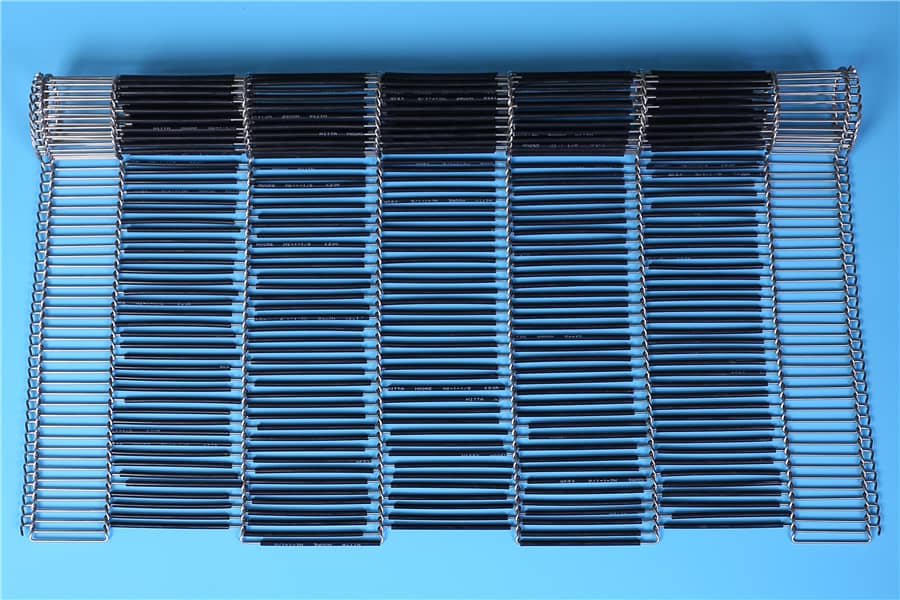

detail pictures
