OEM & ODM Solutions

Precision Engineered Conveyor Belts Since 1992

Customize Stainless Steel Wire Mesh Belt to Your specifications

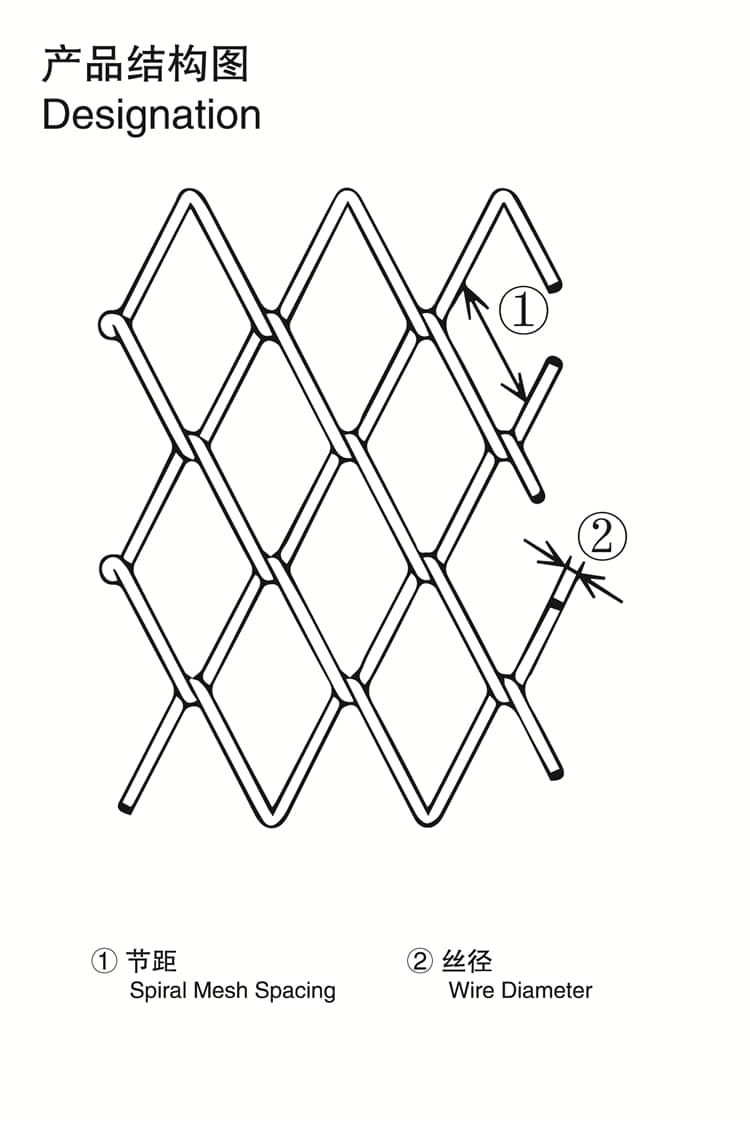

Conventional Weave Belt

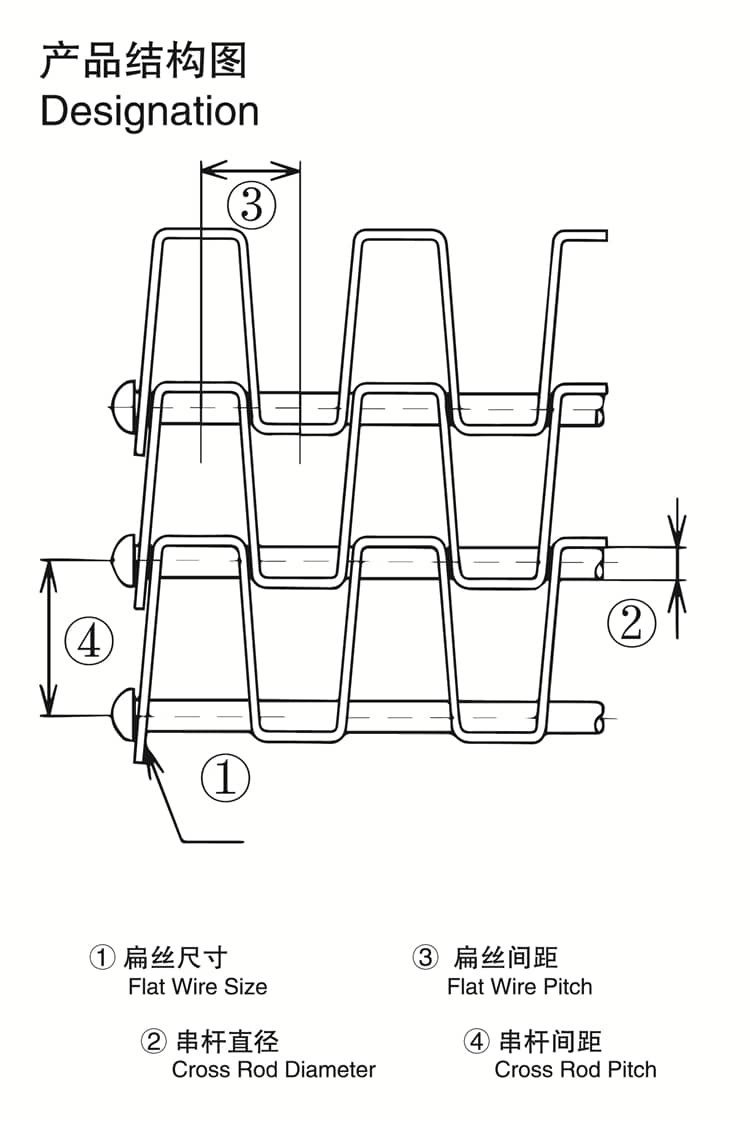

Flat Wire Conveyor Belt Manufacturers

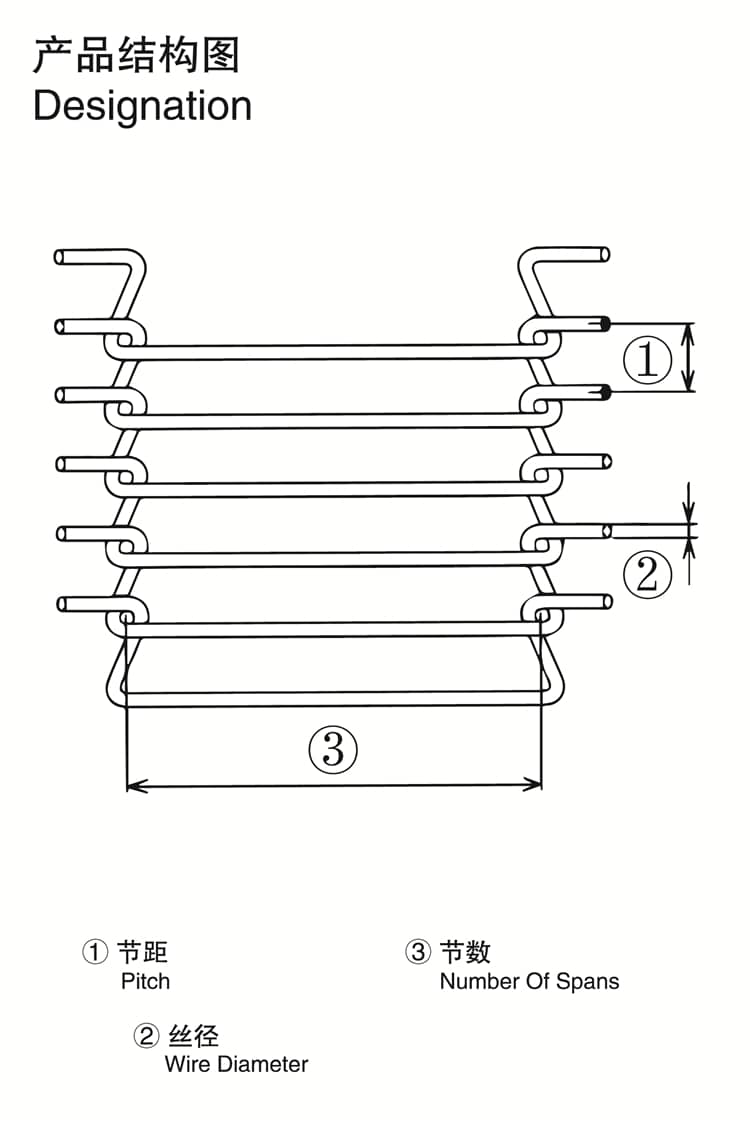

Food Grade Flat Flex Belt FDA

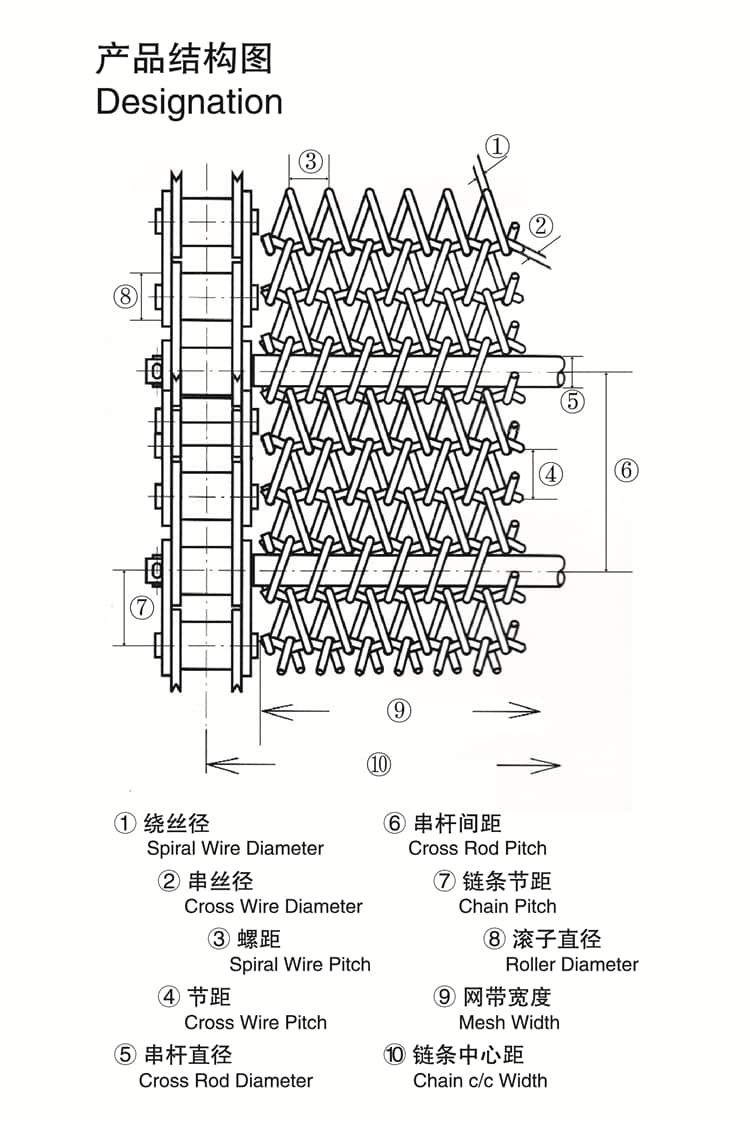

Heavy Duty Chain Driven Conveyor System

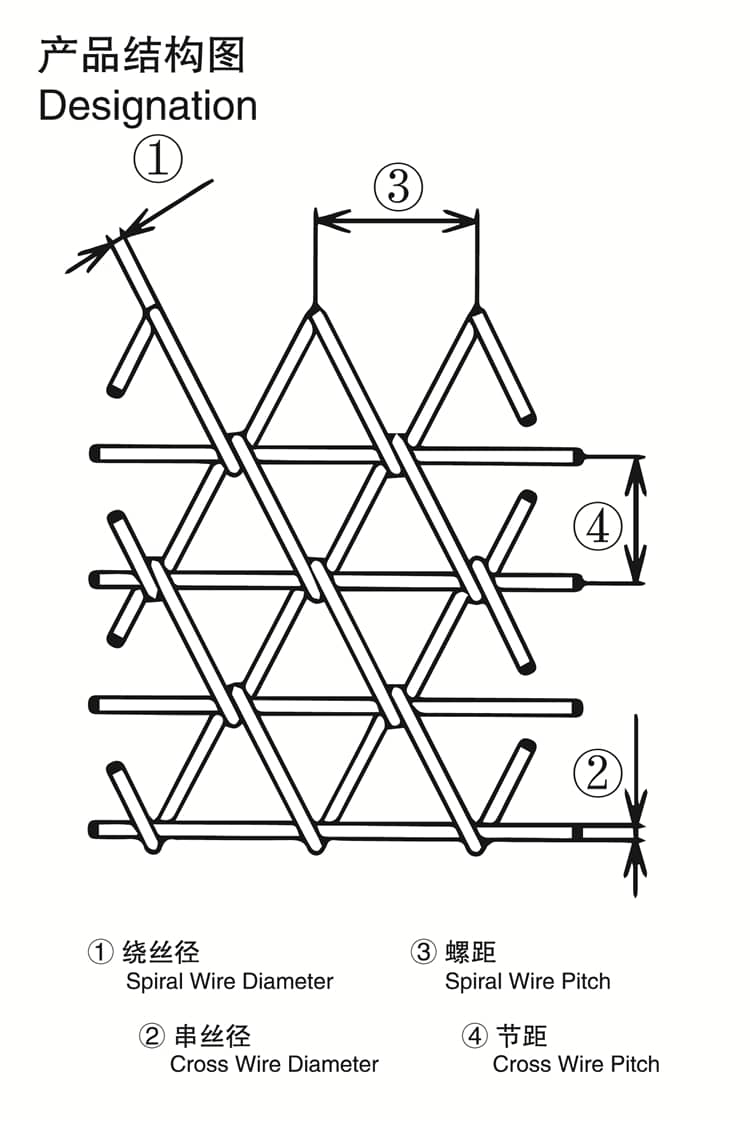

Heavy Duty Rod Reinforced Mining BeltHeavy Duty Rod Reinforced Mining Belt

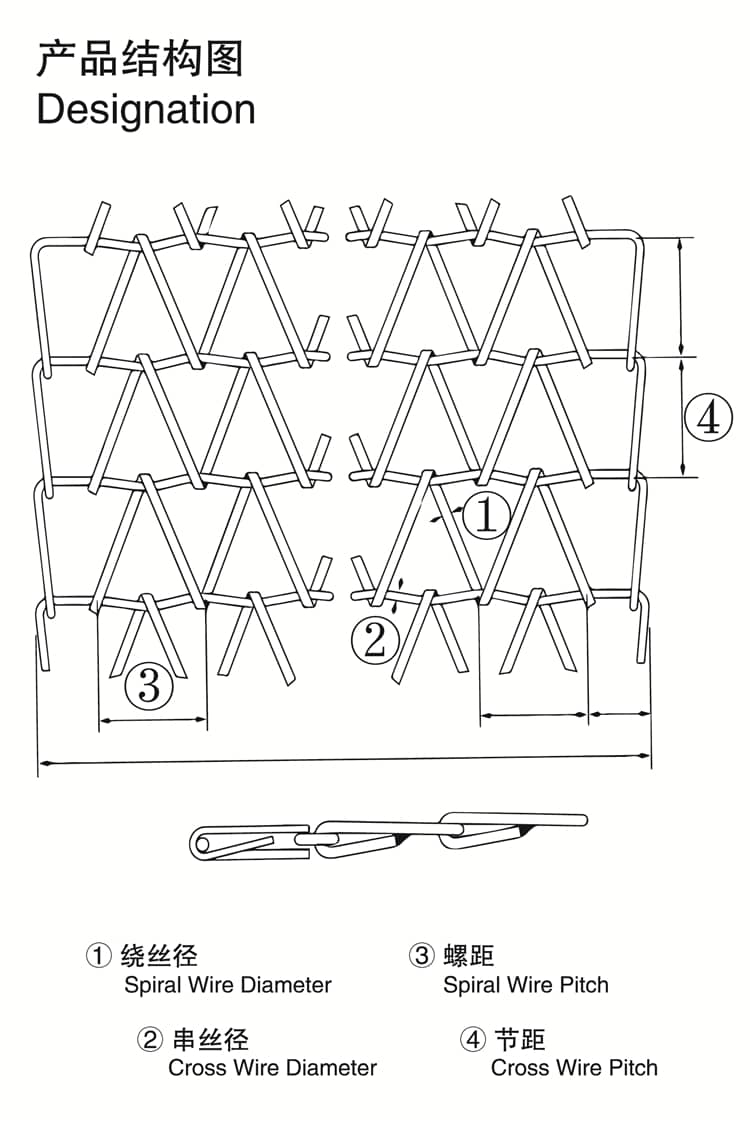

High Temp Clinch Edge Type Belt for Powder Metallurgy

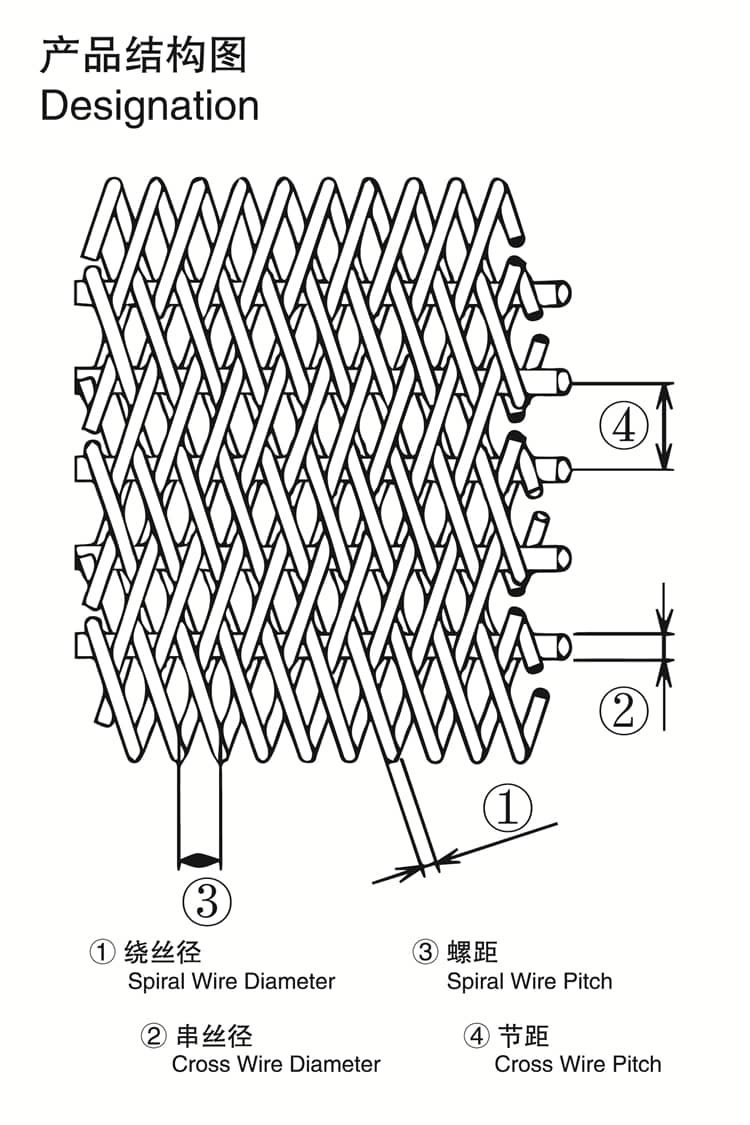

High Temperature Double Balance Oven Belt

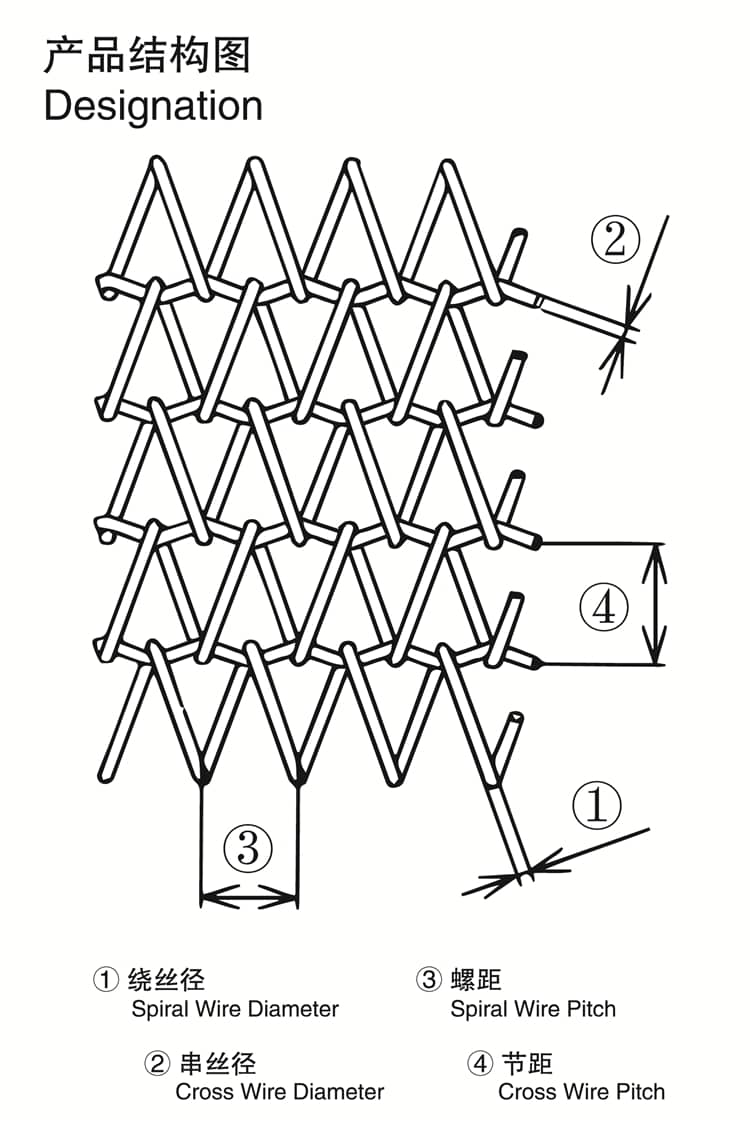

Stainless Steel Balance Weave Belt

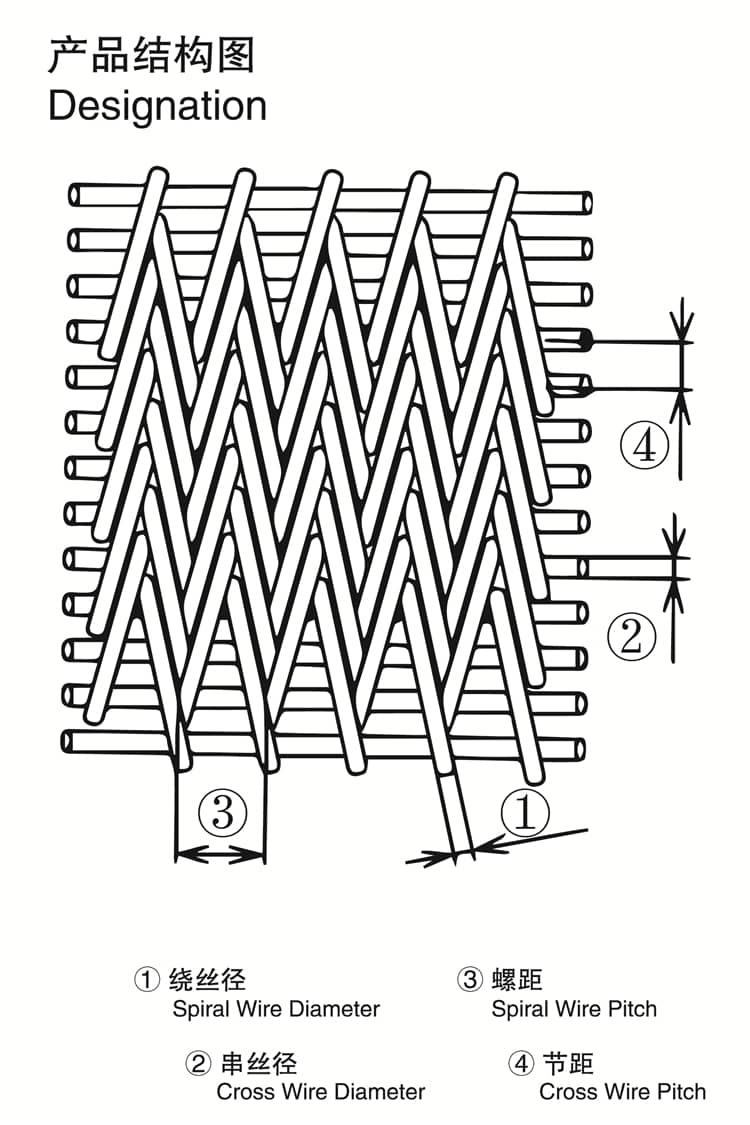

Stainless Steel Compound Balance Belt

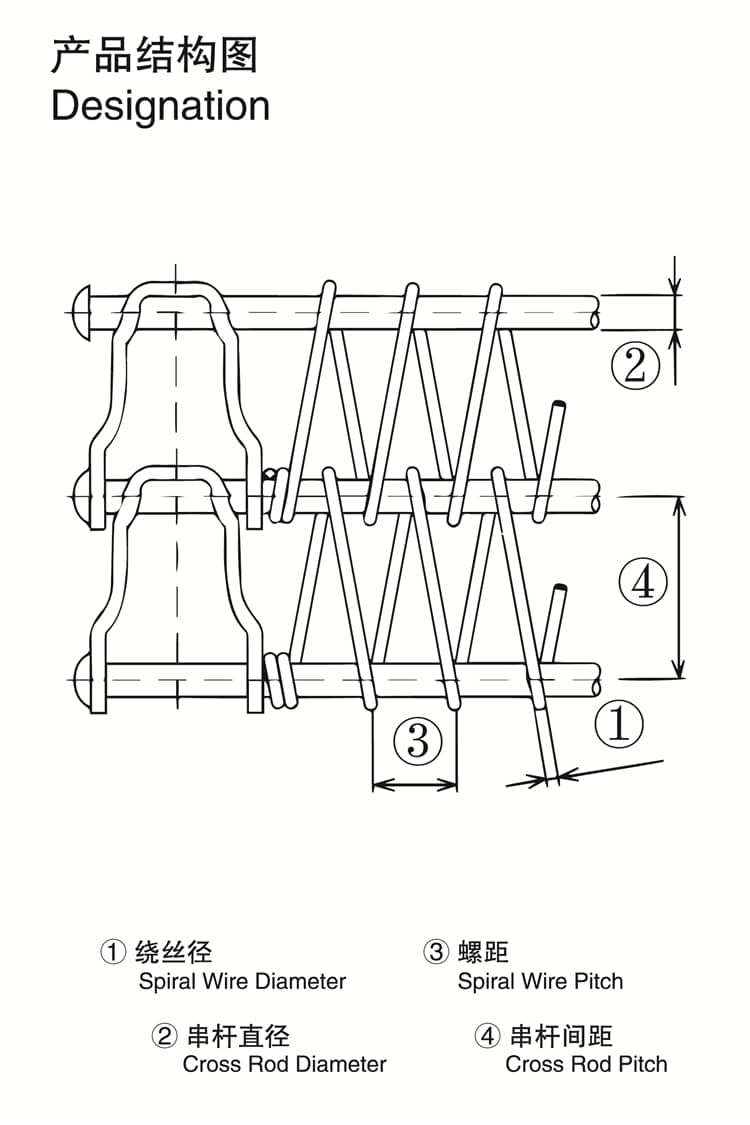

Stainless Steel Spiral Freezer Belt

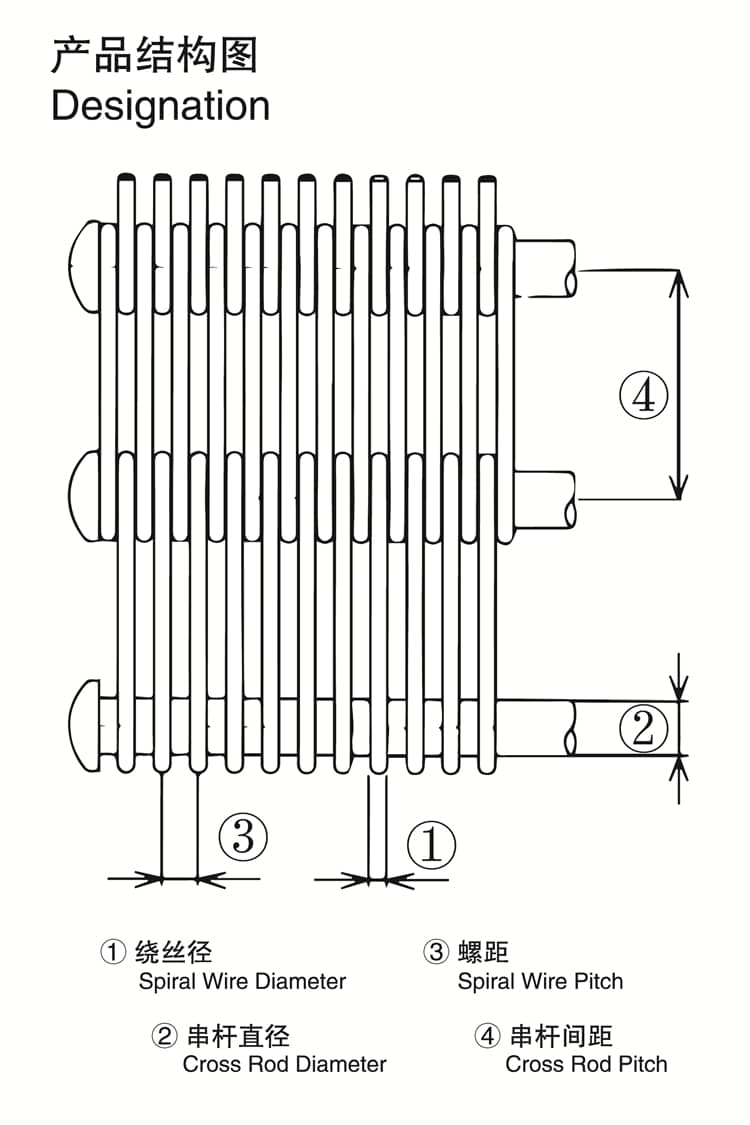

SUS 316l Stainless Steel Wire Ring Belt

Your Customization Journey

Step 1: Connect & Consult

24hr Response Time

• Share your specs via drawing or photos

• Request material (e.g.: 304 / 316L / 310S / 314 / Inconel)

Step 2: Technical Validation

30-Year Engineering Expertise

• DFM analysis within 12 hours

• Confirm technical details and dimensions

Step 3: Commercial Alignment

Transparent Pricing | 15-30% Cost Savings vs Local Suppliers Detailed quotation with:

• MOQ from 50m²

• Lead time: 15-45 days

• EXW/FOB/CIF terms

Step 4: Contract & Production

ISO 9001-Certified Manufacturing

• Real-time production tracking portal

• Third-party inspection accepted

Step 5: Global Delivery

20+ Countries Served Annually

• Wooden crate / Waterproof packaging

• Sea freight/Air freight/Door-to-door logistics support

Why Huada Excels in Custom Manufacturing

Core Competencies

3M Rule
Multi-Material | Multi-Industry | Multi-Standard
10+ stainless steel grades
12+ belt series

Speed-to-Market

99% on-time delivery rate
40,000㎡ production campus

Compliance Mastery

ISO 9001:2015 | CE Machinery Directive | FDA 21 CFR 177.2600
ATEX (On Request) | RoHS | REACH

Main Material

Selecting belt for high temperature

Select material/alloy best suited to operating temperature and gas atmosphere.
Select belt type capable of enduring product load.
Select mesh specification suited to products.

NO.	Chemical components (%)										Maximum operating temperature (℃)
NO.	C	Si	Mn	P	S	Ni	Cr	Mo	Cu	Other	Max operation temperarture
2080	≤0.08	0.75～1.6	≤0.6	≤0.020	≤0.015	76.0～80.0	20.0～23.0	～	～	Fe ≤ 1.0	1200
Inconel601	≤0.10	≤0.50	≤1.0	≤0.030	≤0.015	58.0～63.0	21.0～25.0	～	～	～	1150
AISI 314	≤0.25	1.5～3.0	≤2.0	≤0.045	≤0.030	19.0～22.0	23.0～26.0	～	～	～	1250
SUS 310S	≤0.08	≤1.50	≤2.0	≤0.045	≤0.030	19.0～22.0	24.0～26.0	～	～	～	1100
SUS 316L	≤0.03	≤1.00	≤2.0	≤0.045	≤0.030	12.0～15.0	16.0～18.0	2.0～3.0	～	～	750
SUS 316	≤0.08	≤1.00	≤2.0	≤0.045	≤0.030	10.0～14.0	16.0～18.0	2.0～3.0	～	～	750
SUS 321	≤0.08	≤1.00	≤2.0	≤0.035	≤0.030	9.0～12.0	17.0～19.0	～	～	～	820
SUS 304	≤0.08	≤1.00	≤2.0	≤0.045	≤0.030	8.0～10.5	18.0～20.0	～	～	～	700
SUS 201	≤0.15	≤1.00	≤1.0	≤0.040	≤0.030	～	11.5～13.5	～	～	～	550

Solar Industry

Custom 1200°C sintering belts reduced furnace downtime by 40% for Tier 1 PV manufacturer

Beverage Sector

316L CIP-ready belts increased wash cycle lifespan 3X for European brewery group

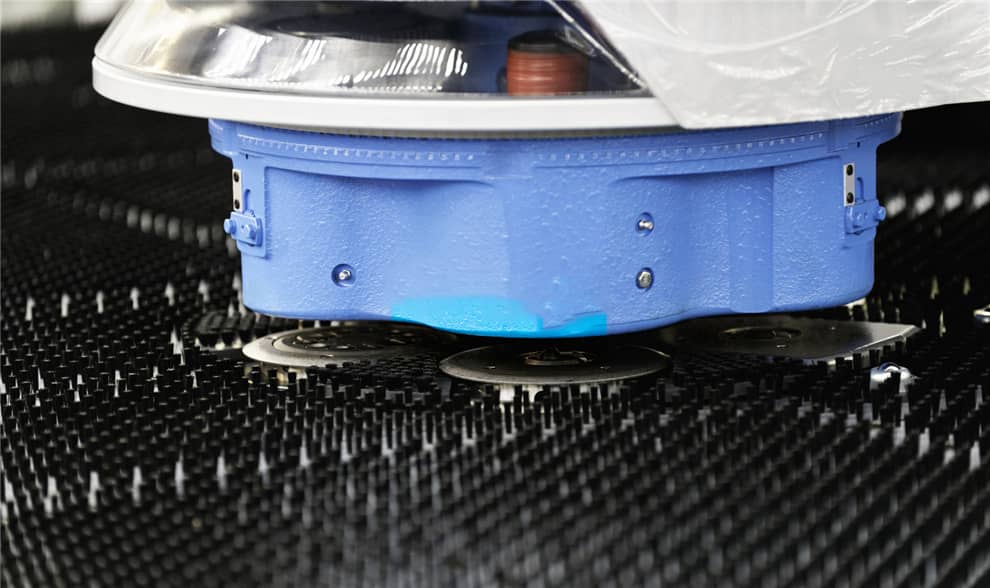

Automotive

High-precision stamping belts improved part positioning accuracy to ±0.15mm

Solar Industry

Beverage Sector

Automotive
